PLC - Mitsubishi

เพิ่มประสิทธิภาพงานควบคุมของคุณด้วย PLC จาก Mitsubishi ผู้นำด้านระบบอัตโนมัติระดับโลก ที่ออกแบบมาเพื่อรองรับงานในภาคอุตสาหกรรมทุกประเภท ด้วยความเสถียรสูง ประมวลผลรวดเร็ว และรองรับการขยายระบบอย่างยืดหยุ่น
 รุ่นสินค้ารายละเอียดผลิตภัณฑ์ราคา

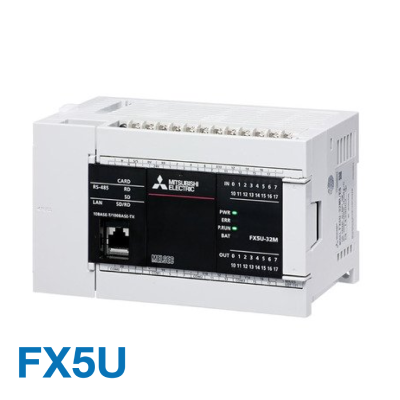

FX5U-32MR/ESI/O Points32 points total: 16 digital inputs (24V DC; Sink/Source) + 16 relay outputs (NO)
Relay OutputsYes, suitable for high-power loads like motors or solenoids
Program Memory64K steps (Flash ROM)
Data Memory128 KB
Device/Label MemoryUp to 2,048 points (X, Y, M, D, T, C, L, W)
SD Card MemorySupports 2GB, 4GB, 8GB, 16GB
Built-in Communication1 x Ethernet (RJ45), 1 x RS-485
Supported ProtocolsMELSEC, Modbus RTU/TCP, SLMP, MC Protocol, N:N Network, Inverter Communication		15,300
FX5U-32MT/ESI/O Points32 points total: 16 digital inputs (24V DC) + 16 transistor outputs (24V DC)
Analog I/O3 analog inputs (voltage) + 1 analog output (voltage)
High-Speed Counters8 channels (200 kHz)
Positioning Control4 axes (200 kHz)
CPU Program Capacity640K steps
Data Memory5 MB
Device Memory120 KB
Power SupplyAC 100240V (50/60 Hz)
Internal DC Supply5V DC, 900 mA
Service Power Supply24V DC, 400 mA
Communication Ports1 x Ethernet (RJ45), 1 x RS-485
Supported ProtocolsMELSEC, Modbus RTU/TCP, SLMP, MC Protocol, N:N Network, Inverter Communication		15,300
FX5U-64MR/ESI/O Configuration64 points total: 32 digital inputs (24V DC; Sink/Source) + 32 relay outputs (24V DC; NO contacts)
Built-in Analog I/O2 analog inputs (voltage) + 1 analog output (voltage)
High-Speed CountersUp to 8 channels (200 kHz)
Positioning ControlUp to 4 axes (200 kHz)
PWM OutputYes
CPU Program Capacity64K steps
Data Memory128K bytes
Power SupplyAC 100240V (50/60 Hz)
Internal DC Supply5V DC, 1.1 A
Service Power Supply24V DC, 600 mA
Communication Ports1 x Ethernet (RJ45), 1 x RS-485		21,990
FX5U-64MT/ESI/O Configuration64 points total: 32 digital inputs (24V DC; Sink/Source) + 32 digital outputs (24V DC; Sink)
Built-in Analog I/O2 analog inputs (voltage) + 1 analog output (voltage)
High-Speed Counters4 channels (200 kHz)
Positioning Control4 axes (200 kHz)
PWM OutputYes
CPU Program Capacity64K steps
Data Memory5 MB
Device Memory120 KB
Power SupplyAC 100240V (50/60 Hz)
Internal DC Supply5V DC, 1.1 A
Service Power Supply24V DC, 600 mA
Communication Ports1 x Ethernet (RJ45), 1 x RS-485
Supported ProtocolsMELSEC, Modbus RTU/TCP, SLMP, MC Protocol, N:N Network, Inverter Communication		21,990
FX5U-80MR/ESI/O Configuration80 points total: 40 digital inputs (24V DC; Sink/Source) + 40 relay outputs (24V DC; Sink)
Built-in Analog I/O2 analog inputs (voltage) + 1 analog output (voltage)
High-Speed CountersUp to 8 channels (200 kHz)
Positioning ControlUp to 4 axes (200 kHz)
PWM OutputYes
CPU Program Capacity64K steps
Data Memory5 MB
Device Memory120 KB
Power SupplyAC 100240V (50/60 Hz)
Internal DC Supply5V DC, 1.1 A
Service Power Supply24V DC, 600 mA
Communication Ports1 x Ethernet (RJ45), 1 x RS-485
Supported ProtocolsMELSEC, Modbus RTU/TCP, SLMP, MC Protocol, N:N Network, Inverter Communication		23,140
FX5U-80MT/ESI/O Configuration80 points total: 40 digital inputs (24V DC; Sink/Source) + 40 transistor outputs (24V DC; Sink)
Built-in Analog I/O2 analog inputs (voltage) + 1 analog output (voltage)
High-Speed CountersUp to 8 channels (200 kHz)
Positioning ControlUp to 4 axes (200 kHz)
PWM OutputYes
CPU Program Capacity64K steps
Data Memory5 MB
Device Memory120 KB
Power SupplyAC 100240V (50/60 Hz)
Internal DC Supply5V DC, 1.1 A
Service Power Supply24V DC, 600 mA
Communication Ports1 x Ethernet (RJ45), 1 x RS-485
Supported ProtocolsMELSEC, Modbus RTU/TCP, SLMP, MC Protocol, N:N Network, Inverter Communication		23,140
 รุ่นสินค้ารายละเอียดผลิตภัณฑ์ราคา
FX5-4AD4-channel analog input module designed for the MELSEC iQ-F series
Number of Input Channels4 (Voltage or Current)
Input TypesVoltage: 05V, 15V, 010V, ±10V; Current: 020mA, 420mA, ±20mA
Resolution16 bits (±0.1% accuracy at 25°C)
Conversion Speed80 µs per channel
IsolationPhotocoupler isolation between input terminals and PLC
Power Supply24V DC ±20%, 5V DC ±5%
Current Consumption24V DC: 40 mA; 5V DC: 100 mA
I/O Points Occupied8 points		8,130
FX5-4DA4-channel analog output module designed for the MELSEC iQ-F series
Number of Output Channels: 4
Output Types:
Voltage: 010V, 05V, 15V, ±10V
Current: 020mA, 420mA
Resolution: 16 bits
Accuracy:
±0.1% at 25°C
±0.2% at 055°C
±0.3% at -200°C
Conversion Speed: 80 µs per channel
Power Supply: 24V DC ±20%
Current Consumption:
24V DC: 40 mA
5V DC: 100 mA
Mounting: DIN rail		9,100
 รุ่นสินค้ารายละเอียดผลิตภัณฑ์ราคา
FX3U-4DA4-channel analog output module designed for the MELSEC FX3U series
Number of Output Channels: 4
Output Types:
Voltage: 010V, 05V, 15V, ±10V
Current: 020mA, 420mA
Resolution: 16 bits
Accuracy:
±0.1% at 25°C
±0.2% at 055°C
±0.3% at -200°C
Conversion Speed: 80 µs per channel
Power Supply: 24V DC ±20%
Current Consumption:
24V DC: 40 mA
5V DC: 100 mA
Mounting: DIN rail		9,160
FX3U-4AD4-channel analog output module designed for the MELSEC FX3U series
Number of Input Channels4
Input TypesVoltage: ±10V, 010V, 15V; Current: 020mA, 420mA
Resolution16 bits (15 bits + sign)
Conversion Time1 ms per channel
Total Accuracy±0.1% at 25°C
Isolation MethodPhotocoupler isolation between the module and the PLC
Power Supply24V DC ±20% (from the base unit)
Current Consumption160 mA @ 24V DC, 120 mA @ 5V DC
Occupied I/O Points8		8,180
 รุ่นสินค้ารายละเอียดผลิตภัณฑ์ราคา

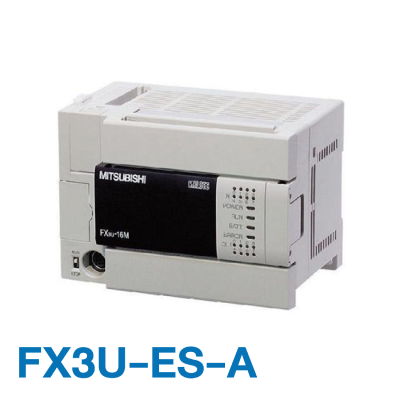

FX3U-16MR-ES-APower Supply100240V AC
I/O Configuration8 DC inputs, 8 relay outputs
Program Memory64K steps
Data Memory32K words
Cycle Time0.21 µs per instruction
Expansion CapabilityUp to 384 I/O points (with expansion units)
Communication PortsRS-232, RS-485, Ethernet (via adapters)
MountingDIN rail or panel mount		7,930
FX3U-16MT-ES-APower Supply100240V AC
Integrated I/O8 digital inputs (24V DC, sink/source)
8 transistor outputs (sink type, 0.5A per point)
Program Capacity64,000 steps
Cycle TimeLD: 0.065 µs; MOV: 0.642 µs
Memory7,680 auxiliary relays; 512 timers; 235 counters; 8,000 data registers
Communication Ports1 x RS-422 (built-in)
Expansion CapabilityUp to 384 I/O points via CC-Link or AnyWireASLINK
MountingDIN rail or panel mount		7,930
FX3U-48MR-ES-APower Supply100240V AC
Integrated I/O24 digital inputs (24V DC), 24 relay outputs (24V DC)
Program Memory64,000 steps
Data Memory32,768 words
Cycle Time0.21 µs per instruction
Communication PortsRS-232, RS-485, Ethernet (via adapters)
Expansion CapabilityUp to 384 I/O points via CC-Link or AnyWireASLINK
MountingDIN rail or panel mount		13,240
FX3U-48MT-ES-APower Supply100240V AC
Integrated I/O24 digital inputs (24V DC, sink/source), 24 transistor outputs (sink type)
Program Memory64,000 steps
Cycle TimeLD: 0.065 µs; MOV: 0.642 µs
Communication PortsRS-422, USB (via adapters), Ethernet/Profibus (via modules)
Expansion CapabilityUp to 384 I/O points via CC-Link or AnyWireASLINK
MountingDIN rail or panel mount		13,240
FX3U-64MR-ES-APower Supply100240V AC
Integrated I/O32 digital inputs (24V DC, sink/source), 32 relay outputs (2A max per point)
Program Memory64,000 steps
Cycle TimeLD: 0.065 µs; MOV: 0.642 µs
Communication PortsRS-422, USB (via adapters), Ethernet/Profibus (via modules)
Expansion CapabilityUp to 384 I/O points via CC-Link or AnyWireASLINK
MountingDIN rail or panel mount		15,190
FX3U-64MT-ES-APower Supply100240V AC
Integrated I/O32 digital inputs (24V DC, sink/source), 32 transistor outputs (sink type)
Program Memory64,000 steps
Cycle TimeLD: 0.065 µs; MOV: 0.642 µs
Communication PortsRS-422, USB (via adapters), Ethernet/Profibus (via modules)
Expansion CapabilityUp to 384 I/O points via CC-Link or AnyWireASLINK
MountingDIN rail or panel mount		15,190
FX3U-80MR/ES-APower Supply100240V AC
Integrated I/O40 digital inputs (24V DC, sink/source), 40 relay outputs (2A max per point)
Program Memory64,000 steps
Cycle TimeLD: 0.065 µs; MOV: 0.642 µs
Communication PortsRS-422, USB (via adapters), Ethernet/Profibus (via modules)
Expansion CapabilityUp to 384 I/O points via CC-Link or AnyWireASLINK
MountingDIN rail or panel mount		17,570
FX3U-80MT/ES-APower Supply100240V AC
Integrated I/O40 digital inputs (24V DC, sink/source), 40 transistor outputs (sink type)
Program Memory64,000 steps
Cycle TimeLD: 0.065 µs; MOV: 0.642 µs
Communication PortsRS-422, USB (via adapters), Ethernet/Profibus (via modules)
Expansion CapabilityUp to 384 I/O points via CC-Link or AnyWireASLINK
MountingDIN rail or panel mount		17,570
FX3U-128MR-ES-APower Supply100240V AC
Integrated I/O64 digital inputs (24V DC, sink/source), 64 relay outputs (2A max per point)
Program Memory64,000 steps
Cycle TimeLD: 0.065 µs; MOV: 0.642 µs
Communication PortsRS-422, USB (via adapters), Ethernet/Profibus (via modules)
Expansion CapabilityUp to 384 I/O points via CC-Link or AnyWireASLINK
MountingDIN rail or panel mount		23,120
FX3U-128MT-ES-APower Supply100240V AC (50/60Hz)
Integrated I/O64 digital inputs (24V DC, sink/source), 64 transistor outputs (sink type)
Program Memory64,000 steps
Cycle TimeLD: 0.065 µs; MOV: 0.642 µs
Communication PortsRS-422, USB (via adapters), Ethernet/Profibus (via modules)
Expansion CapabilityUp to 384 I/O points via CC-Link or AnyWireASLINK
MountingDIN rail or panel mount		23,120
